Problem

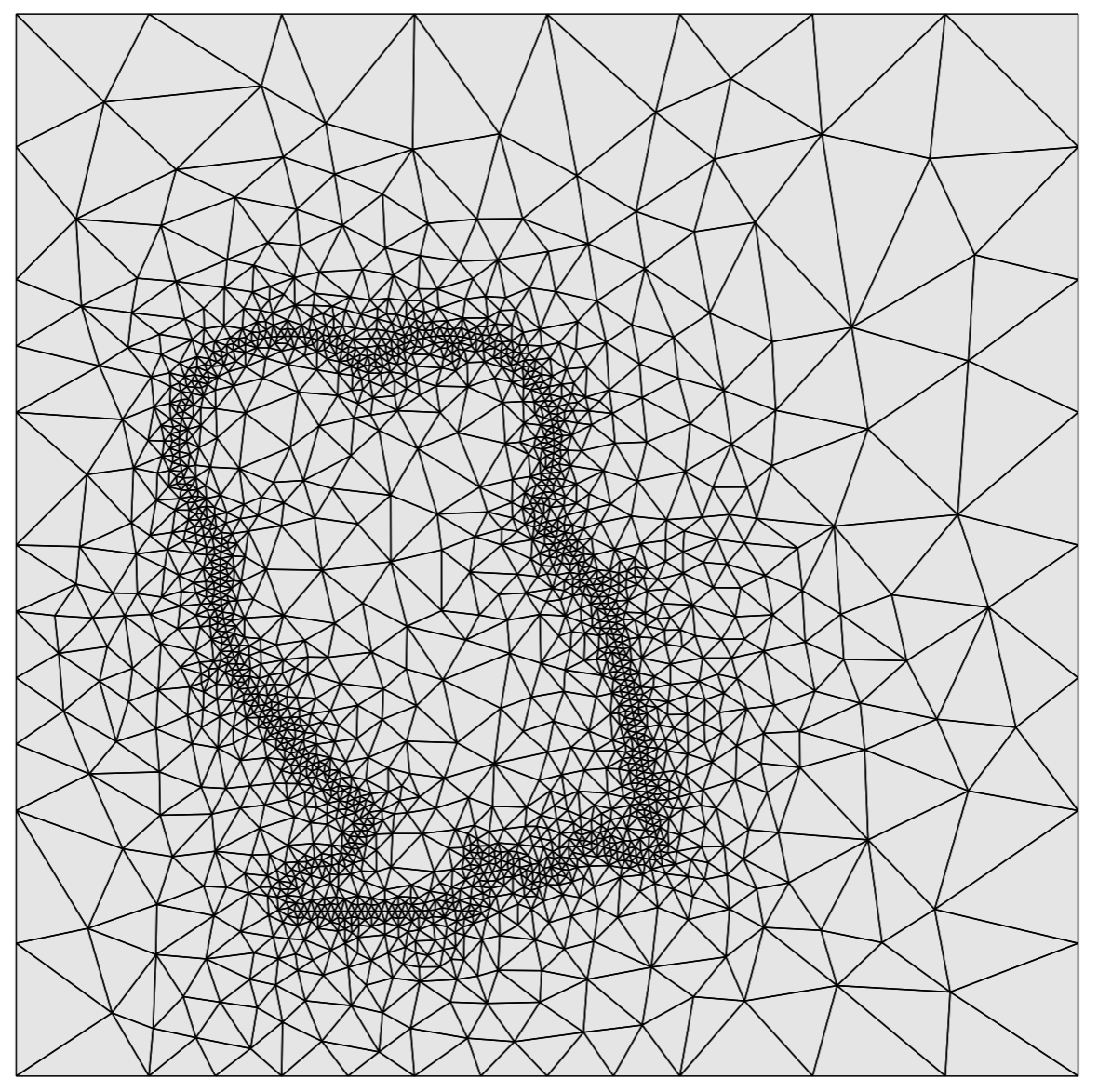

Meshing is hard

Consider a simple problem with Dirichlet boundary conditions, i.e. a boundary-value problem

$$\Delta u(x)=0,\quad u(x)\big|_{\partial\Omega}=h(x),$$

where (for mathematicians) $\Delta \equiv \partial^2_{j}$.

Walk-on-spheres

Running a random-walk for each

In other words, the algorithm substitutes the Wiener process with the grow-and-sample method, which reduces computational time, and can set fixed bounds on the iterations (which makes it easier to paralellize). Instead of hoping to sample the boundary within a time $t$, one just sets a large N_iter and hopes for the best! A graphical description of the algorithm is shown below

One can see that the algorithm builds the solution from the outside towards the inside, as the points near the boundary converge faster to the solution.

It is quite suprising how fast the solver gets a feeling for the solution’s characteristics. The rest of the iterations just smoothen things out a bit, but the ‘orange-wedges’ pattern appears as earlt as the 34th iteration!

The code for performing the walk-on-spheres steps is contained within wos_single_walk_circle, which one calls for a set of points in $\Omega$. These describe the process in the wikipedia page for the algorithm,

$$ u(x)=E[h(W_\tau)]\sim \frac{1}{n}\sum_i^nh(W_\tau^i) $$

function wos_single_walk_circle(
  x0::Vector{Float64},
  R::Float64,
  phi_b::Function;
  eps::Real=1e-3,
  max_steps::Int=10_000
  )

  x = copy(x0)
  for _ in 1:max_steps
    # distance to circle
    r = max(R - norm(x), 0.0)
    if r <= eps
      # closest point on boundary (circle)
      r = norm(x)
      if r == 0.0
        return phi_b([R, 0.0])
      else
        return phi_b((R / r) * collect(x))
      end
    end
    # random point on ball (go to next point)
    θ = 2π * rand()
    x = [x[1] + r * cos(θ), x[2] + r * sin(θ)]
  end
  error("wos_single_walk_circle: exceeded max steps")
end

s = zeros(nx, ny)
for _ in 1:num_iter
  s_old = copy(s)
  s += @. wos_single_walk_circle(points, R, phi_b)
  convergence[k] = sum(abs.(s_old / (k-1) - s / k))
  # optional: do a convergence break
end

Further reading

This algorithm came back to use for computer graphics, and a new, improved version was named Walk on Stars. This has all the advantages that I described above, mainly that it is mesh-free, but it can handle Neumann boundary conditions too.
